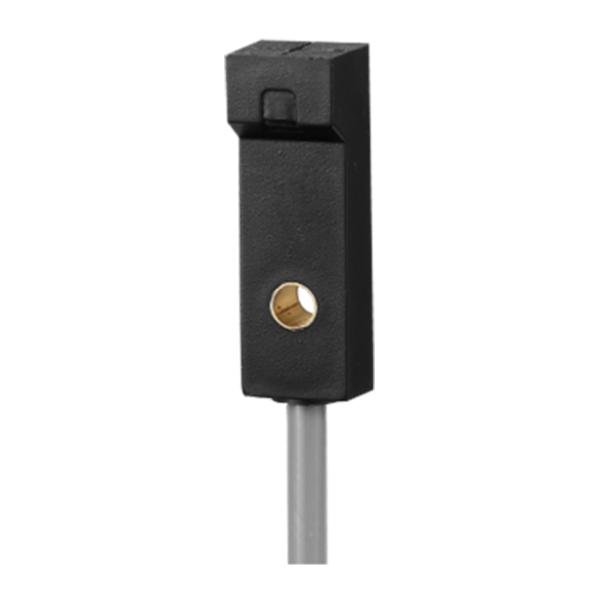

SR-SL-QF08 500Hz Dc Proximity Switch Q8 Proximity Inductive Sensor IP67

Name: SRSLQF08 500Hz Dc Proximity Switch Q8 Proximity Inductive Sensor IP67
Brand: SUPERISYS
Price: 1 USD

Brand Name : SUPERISYS

Model Number : SR-SL-QF08

Certification : ISO\FCC\ROSH

Place of Origin : CHINA

MOQ : one

Price : Large quantity price negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000 per day

Delivery Time : 1-2 work days

Stock : In Stock

Description : Dc capacitive proximity switch,

external diameter : Q8

Sensing distance sn: mm : 2.5mm

canning material : polycarbonate

working voltage : 10-30VDC

Allowable ripple voltage : ＜10%

no-load current : ＜10mA

Maximum load current : 100mA

leak current : ＜0.01mA

pressure drop : ＜1 .5V

switching frequency : 500Hz

response time : 0.5ms/0.5ms

Switching hysteresis : ＜15%（Sr）

repeated accuracy : ＜0.04mm

level of protection : IP67

operating temperature : -25℃~+70℃

temperature drift : ＜10%（Sr）

short-circuit protection : YES

overcurrent : 120mA

Inductive surface material : polycarbonate

Weight (approximate) : 12g

Contact Now

SR-SL-QF08,Dc Inductive Approach Light

Product characteristics

Operating voltage: 10-30VDC

Output function: NPN/PNP, NO/NC Optional

With polarity, overload, short circuit protection

Protection level: IP67

Direct outlet type, connector type

Operating temperature -25°C-+70%C

The use of optimized traditional technology and advanced packaging technology to ensure long-term stability in harsh environments

model	SR-SL-QF08	SR-SL-QL08
external diameter	Q8
● flush ○ unshielded	○
Sensing distance sn: mm	2.5mm

canning material	polycarbonate
●tape light ○No indicator	●












working voltage	10-30VDC
Allowable ripple voltage	＜10%
no-load current	＜10mA
Maximum load current	100mA
leak current	＜0.01mA
pressure drop	＜1 .5V

switching frequency	500Hz
response time	0.5ms/0.5ms
Switching hysteresis	＜15%(Sr)
repeated accuracy	＜0.04mm
level of protection	IP67
operating temperature	-25℃~+70℃
temperature drift	＜10%(Sr)
short-circuit protection	YES
overcurrent	120mA
Inductive surface material	polycarbonate
Size drawing (unit: mm)







Cable 2m	2.8φ3x0.15 PUR	2.8φ3x0.15 PUR
Weight (approximate)	12g	12g
